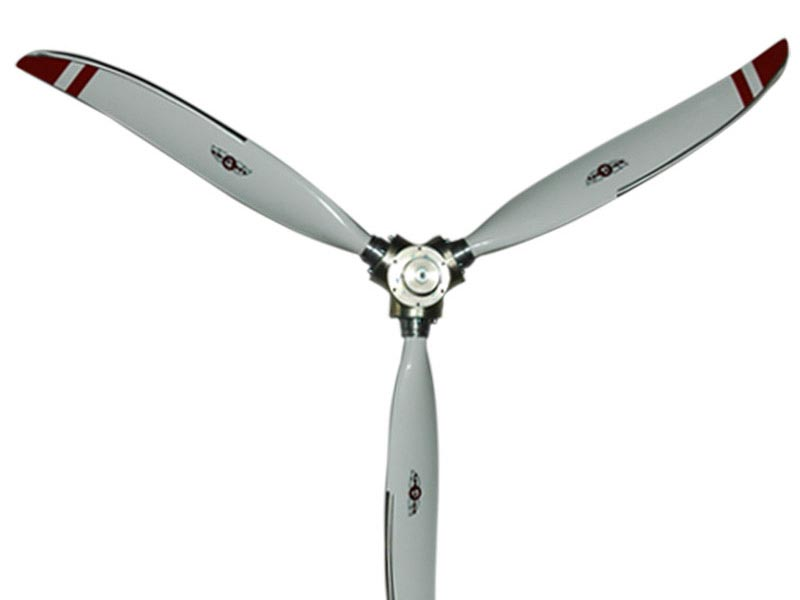

Sensenich L69/R70 blades
[VPH6-TH-L69EN] or [VPH6-TH-R70EN]
Propeller for Aicraft powered by 150/180 Hp Engine
HYDRAULICH HUB
Hydraulic piston is made by using special solutions and materials in order to achieve the absolute hydraulic seal and the operation long-life.
Mechanical anti-reverse stop system.
Hub machined from aluminium alloy rod and blade shank in high strength steel.
Excellent performances over the entire flight envelope of the aircraft (take-off, climb, cruise and top speed). High flight comfort, high quality finishing, low moment of inertia.
Installation of the our propeller is reduced to a very simple operation sequence:
> Installation of brushes and slip ring on the engine gear box
> Tightening of the n. 6 bolts on the propeller/shaft flange
> Mounting of each blade in its numbered seat.
Features
Simple Operation
The Fp-propeller hydraulic systems need a hydraulic governor to operate (i.e. Jihostroj like in the picture)
Through this it becomes a 1 lever system with a very fast pitch change of up to 30°/sec
Easy installation
The installation of the propeller is very straight forward and is designed to be accomplished in a short time by any competent layperson. Included is a very comprehensive operators manual and propeller log book. The propeller comes pre-lubricated and Dynamically balanced with all the necessary hardware supplied.
- Pre-lubricated
- Pre-aligned
- Pre-balanced (Certificate provided)
- Detailed manual
Specification
| Propeller diameter: | 1780 mm |
| Weight : | 9,72 kg |
| Moment of inertia: | 5,250 kg*cm2 |
| Pitch range: | from -30° to +35°, adjustable |
| Pitch change speed: | 3,5 °/sec |
| Applications: | Ultralight Amphibious powered by Rotax 912, 912S, 914 |
| Available versions: | tractor |
